W/ Box and Power Supply
This all analog instrument is capable of conjuring a vast array of sounds that range from organic to chaotic. In its more subtle settings, the MF-102 conjures beautiful tremolo effects, while at extreme settings becomes completely transformative - creating bizarre and robotic resonations.

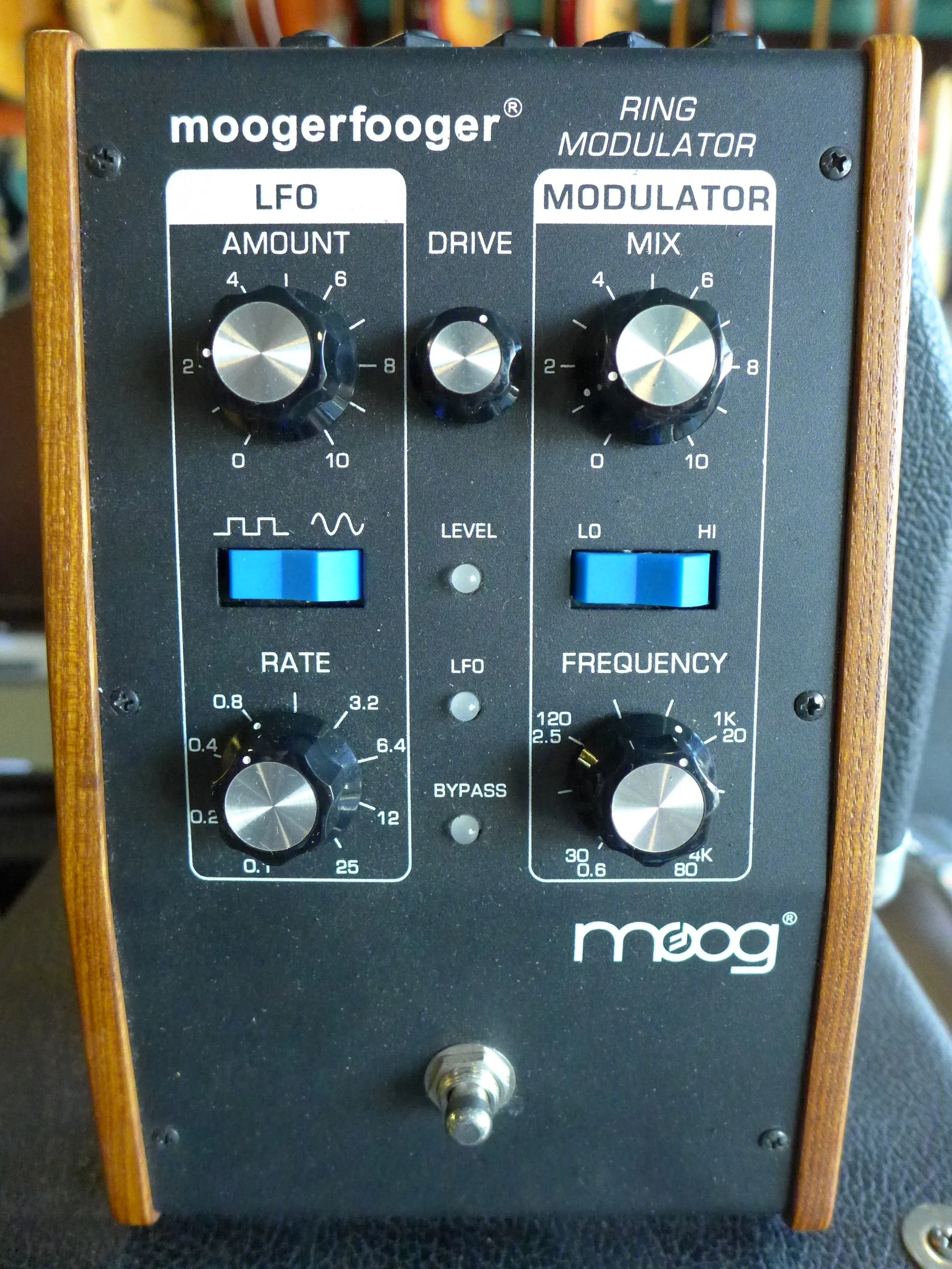

The MF-102 Ring Modulator is a direct descendant of Moog modular synthesizers designed to work with any sound source. This all analog instrument is capable of conjuring a vast array of sounds that range from organic to chaotic. In its more subtle settings, the MF-102 conjures beautiful tremolo effects, while at extreme settings becomes completely transformative - creating bizarre and robotic resonations.
Designed by Bob Moog, the MF-102 is comprised of three complete modular functions: a ring modulator, a voltage-controlled carrier oscillator and a voltage-controlled dual-waveform LFO that combine to create a sonically expansive assortment of both musical and clangorous harmonic manipulations. To further expand on this classic modularity, the MF-102 contains multiple CV/Expression Pedal inputs and outputs. This allows each parameter to be manipulated and controlled simultaneously, while also providing modular interconnectivity between other Moogerfooger analog effects.
DRIVE Adjusts audio input gain with three-color level LED
MIX Crossfades continuously from unmodulated to modulated audio
BYPASS On/Bypass switch with two-color LED indicator
FREQUENCY Varies the carrier oscillator frequency from 2Hz-4kHz
LO / HI Select between the low frequency carrier range (2Hz-130Hz) and the high frequency carrier range (60Hz-4,000Hz)
LFO RATE Variable from 0.1Hz - 25Hz with indicator LED
LFO AMOUNT Determines home much the LFO modulates the carrier oscillator
